Parameters

• Model number

  XL500-C-B

• Wires Specs

  4 * 2 * 0.50 (mm)

• Operation Temperature

  -20°C to +60°C

• Material

  Copper-clad aluminium

• Diameter

  1/0.50mm±0.01mm

• Wire Gauge

  24AWG

• Material

  HDPE

• Diameter

  0.92mm±0.05mm

• Avg.Thickness

  0.19

• Min.Thickness(mm)

  0.17

• Color

  Blue, white/blue; orange, white/orange; green, white/green; brown, white/Brown

• Material

  Nylon

• Wrap




• Material

  Polyester tape (transparent)

• Dimensions

  W: 20mm±2mm T: 0.026mm±0.02mm

• Sheath




• Material

  LDPE

• Min. Average Thickness

  0.7 mm(0.03")

• Diameter

  5.2 mm ± 0.4 mm(0.20"± 0.0157")

• Color

  Black

• Electrical




• Insulation Resistance

  Min.5000mega ohms-km at 20°C

• Dielectric Strength

  No Breakdown with 1000V DC for 1min

• Delay Difference

  ≤45ns

• Test Model

  100Mhz

• Impedance

  100Ω±15

• Mechanical




• Insulation Elongation at Break

  ≥300%

• Insulation Tensile Strength

  ≥16 Mpa

• Jacket Elongation at Break

  ≥150%

• Jacket Tensile Strength

  ≥13.5 Mpa

• Package




• Packing

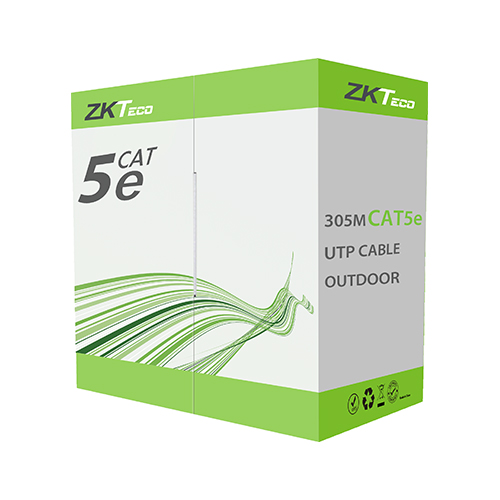

  Pull box

• Length

  305m

• Drain wire

  N/A

• Carton (L*W*H)

  355 * 355 * 220 (mm)

• Ordering Information




• Product Type

  CAT 5e Cable

• Part Number

  XL500-C-B

• Description

  CAT 5e; 4*2*0.50, OD5.2±0.30mm

• Rip Cord

  Yes
