Parameters

• Model number

  XL500-C

• Standards

  YD/T1019-2013; ISO/IEC 11801; ANSI/TIA/ETA 568-B

• Wires Specs

  4 * 2 * 0.50 (mm)

• Operation Temperature

  -20°C to +60°C

• Material




• Conductor




• Material

  Copper-clad aluminium

• Diameter

  1/0.50mm±0.01mm

• Avg.Thickness(mm)

  0.19

• Wire Gauge

  24AWG

• Insulation




• Color

  Blue, white/blue; orange, white/orange; green, white/green; brown, white/Brown

• Material

  HDPE

• Filler




• Jacket




• Material

  Nylon

• Avg.Thickness

  0.5mm

• Material

  PVC

• Min.Thickness

  0.4mm

• Electrical




• Conductor Resistance

  ≤9.38Ω/100M at 20°C

• Insulation Resistance

  Min.5000mega ohms-km at 20°C

• Dielectric Strength

  No Breakdown with 1000V DC for 1min

• Delay Difference

  45ns

• Frequency

  100Mhz

• Mechanical




• Insulation Elongation at Break

  ≥300%

• Insulation Tensile Strength

  ≥16 Mpa

• Jacket Elongation at Break

  ≥150%

• Jacket Tensile Strength

  ≥13.5 Mpa

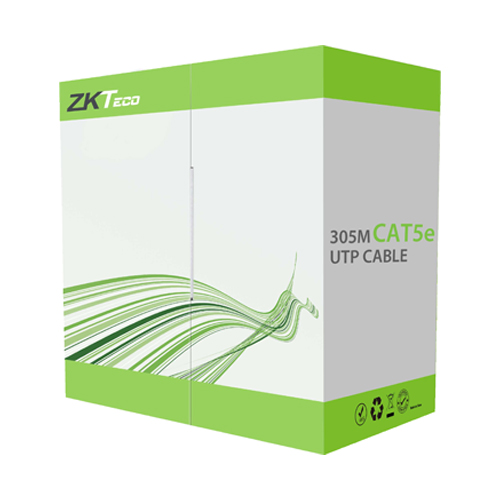

• Package




• Packing

  Pull box

• Length

  305m

• Rip Cord

  Yes

• Drain wire

  N/A

• Carton (L*W*H)

  355 * 355 * 220 (mm)

• Ordering Information




• Product Type

  CAT 5e Cable

• Part Number

  XL500-C

• Description

  CAT 5e; 4*2*0.50, OD5.2±0.30mm
